Hien R32 Heat Pump with A+++ Energy Rating and DC Inverter Technology: Monobloc Air to Water Heat Pump

Short Description:

KEY FEATURES
1,Function: heating, cooling, and domestic hot water functions
2,Heating Capacity: 8kW-16kW
3,Extreme Temperature Performance: Stable operation at –25 °C
4,Environmentally Friendly: Utilizes R32 green refrigerant
5,Energy Saving: Achieves up to 80% energy efficiency
6,Ultra-Low Noise: Operates as quietly as 50 dB(A)
7,Superior Energy Efficiency: A+++
8,Advanced Compression Technology: DC inverter EVI compressor
9,Smart Controls: Wi-Fi enabled with app for convenient remote control.
10,Solar System Compatibility: Can easily be connected to a PV solar system

Send email to us

Download as PDF

Product Detail

Product Tags

R32 DC Inverter heat pump

R32 DC Inverter heat pump has heating, cooling and hot water function, so it can be used all year round.

With R32 refrigerat,users can get DHW with a high temperature up to 60 °C,Stable running at -25°C ambient temperature.

1	Function: heating, cooling, and domestic hot water functions
2	Voltage: 220v-240v -inverter - 1n or 380v-420v -inverter- 3n
3	Heating Capacity: 8kW-16kW
4	Using R32 green refrigerant
5	Super low noise as low as 50 dB(A)
6	Energy-saving up to 80%
7	Stable running at -25°C ambient temperature
8	Adopted Panasonic inverter compressor
9	Superior Energy Efficiency: Achieves the highest A+++ energy level rating.
10	Smart Control: Easily manage your heat pump with Wi-Fi and Tuya app smart control.

If you are interested in this product,Click on the “contact us” button on the website to contact us

we will reply you and also send you the latest productcatalog and latest quotation within 1 hour!

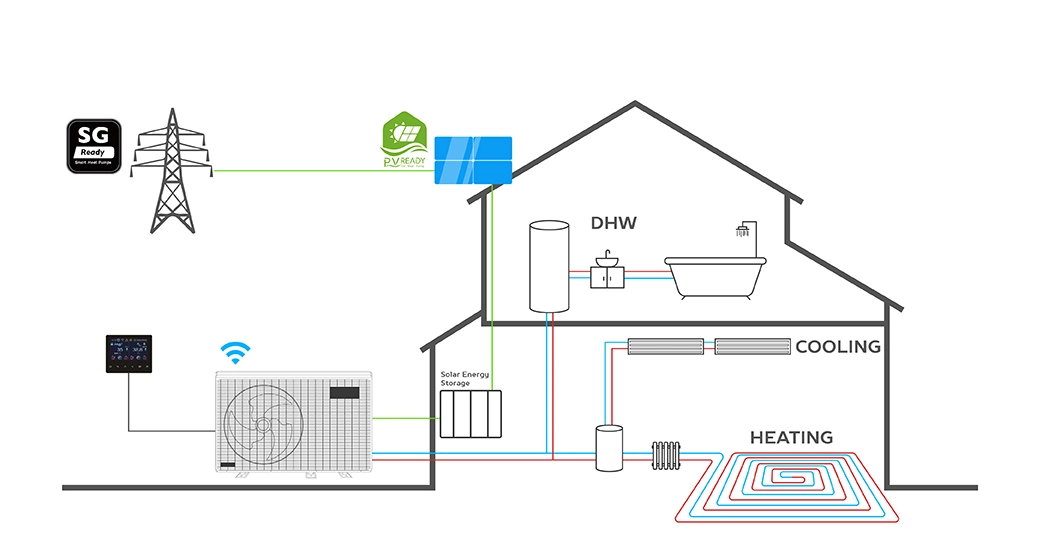

Can be connected with PV solar system

Stable Running at -25℃ Ambient Temperature

Thanks to the unique Inverter EVI technology, can operate efficiently at -25°C, maintain high COP and reliable
stability.Intelligent control, any weather available, automatic load adjust under different climate and environment to satisfy the

demands of summer cooling, winter heating and hot water throughout the year.

SMART CONTROL FAMILY

The intelligent controller with RS485 is adopted to realize the linkage control between the heatpump unit and the terminal end,

Multiple heat pumps can be controlled and connected to be welmonitored.

With Wi-Fi APP enables you to operate the units through a smart phone wherever and wheneveryou are.

WIFI DTU

To deliver the best user experience, designed with a DTU module for remote datatransferring, and then you can easily monitor the running status of your heating system.

Smart APP control

Smart APP control brings a lot of convenience to users.

Temperature adjustment, mode switching, and timersetting can be achieved on your smart phone.

Moreover, you can know power consumption statistics andfault record at anytime and anywhere.

Model:		WDLRK-8 I BM/A3	WDLRK-10ⅠBM/A3	WDLRK-12ⅠBM/A3	WDLRK-14ⅠBM/A3	WDLRK-16ⅠBM/A3
Rated Heating Capacity	kW	8.00	10.00	11.60	14.00	16.00
Rated Heating Input	kW	1.80	2.22	2.64	3.04	3.41
Rated Heating Current	A	7.82	9.66	11.46	13.23	14.82
COP	W/W	4.44	4.50	4.40	4.60	4.70
Rated Cooling Capacity	kW	9.00	11.50	13.20	16.20	18.00
Rated Cooling Input	kW	2.40	3.09	4.00	4.62	5.07
Rated Cooling Current	A	10.43	13.44	17.39	20.12	22.04
EER	W/W	3.75	3.72	3.30	3.50	3.55
Power Supply	V,Hz	220-240V~,50HZ	220-240V~,50HZ	220-240V~,50HZ	220-240V~,50HZ	220-240V~,50HZ
Rated Power Input	kW	3.20	4.14	4.58	5.47	6.55
Rated Current	A	14.65	18.94	20.96	25.04	29.00
HP. PS	MPa	4.20	4.20	4.20	4.20	4.20
LP. PS	MPa	1.60	1.60	1.60	1.60	1.60
Max. Allowable Pressure	MPa	4.20	4.20	4.20	4.20	4.20
Refrigerant Type	/	R32	R32	R32	R32	R32
Charge	kg	1.70	1.70	1.95	2.50	2.60
GWP	/	675	675	675	675	675
Co2 Equivalent	t	1.15	1.15	1.32	1.69	1.76
Waterproof Grade	/	IPX4	IPX4	IPX4	IPX4	IPX4
Electrical Shockproof	/	Class I	Class I	Class I	Class I	Class I
Sound Power Level	dB(A)	58	58	62	62	62
Max. Water Outlet Temp.	℃	60	60	60	60	60
Diameter of Water Connection	/	DN25	DN25	DN25	DN25	DN25
Rating Water Flow	m³/h	1.38	1.72	1.99	2.41	2.75
Min/Max Water Side Pressure	MPa	0.05/0.3	0.05/0.3	0.05/0.3	0.05/0.3	0.05/0.3
Net Dimensions (LxWxH)	mm	1200470765	1200470765	1200470765	1370500935	1370500935
Net weight	kg	100	102	106	126	137
Rated Test Conditions: Heating: Ambient Temp. (DB / WB): 7℃/6℃ Water Temp.(Inlet / Outlet): 30℃/35℃. Cooling:Ambient Temp. (DB / WB): 35℃/24℃. Water Temp. (lnlet / Outlet): 23℃ / 18℃. According to safely tests. The above parameters, if there are slight differences due to technical improvementsplease refer to the relevant specifications of the actual product for accuracy.

Model:		WDLRK-12ⅡBM/A3	WDLRK-14ⅡBM/A3	WDLRK-16ⅡBM/A3
Rated Heating Capacity	kW	11.60	14.00	16.00
Rated Heating Input	kW	2.58	3.13	3.44
Rated Heating Current	A	3.72	4.75	5.22
COP	W/W	4.50	4.47	4.65
Rated Cooling Capacity	kW	13.20	16.20	18.00
Rated Cooling Input	kW	3.64	4.72	5.11
Rated Cooling Current	A	5.24	7.17	7.77
EER	W/W	3.63	3.43	3.52
Power Supply	V,Hz	380-415V,3N~,50Hz	380-415V,3N~,50Hz	380-415V,3N~,50Hz
Rated Power Input	kW	4.67	5.63	7.20
Rated Current	A	7.10	9.01	11.25
HP. PS	MPa	4.20	4.20	4.20
LP. PS	MPa	1.60	1.60	1.60
Max. Allowable Pressure	MPa	4.20	4.20	4.20
Refrigerant Type	/	R32	R32	R32
Charge	kg	1.95	2.50	2.60
GWP	/	675	675	675
Co2 Equivalent	t	1.69	1.69	1.76
Waterproof Grade	/	IPX4	IPX4	IPX4
Electrical Shockproof	/	Class I	Class I	Class I
Sound Power Level	dB(A)	55	62	62
Max. Water Outlet Temp.	℃	60	60	60
Diameter of Water Connection	/	DN25	DN25	DN25
Rating Water Flow	m³/h	1.99	2.41	2.75
Min/Max Water Side Pressure	MPa	0.05/0.3	0.05/0.3	0.05/0.3
Net Dimensions (LxWxH)	mm	1370500935	1370500935	1370500935
Net weight	kg	120	147	154
Rated Test Conditions: Heating: Ambient Temp. (DB / WB): 7℃/6℃ Water Temp.(Inlet / Outlet): 30℃/35℃. Cooling:Ambient Temp. (DB / WB): 35℃/24℃. Water Temp. (lnlet / Outlet): 23℃ / 18℃. According to safely tests. The above parameters, if there are slight differences due to technical improvementsplease refer to the relevant specifications of the actual product for accuracy.
