In the realm of heating and cooling technologies, heat pumps have emerged as a highly efficient and environmentally friendly solution. They are widely used in residential, commercial, and industrial settings to provide both heating and cooling functions. To truly understand the value and operation of heat pumps, it is essential to delve into their working principles and the concept of the Coefficient of Performance (COP).
The Working Principles of Heat Pumps
Basic Concept

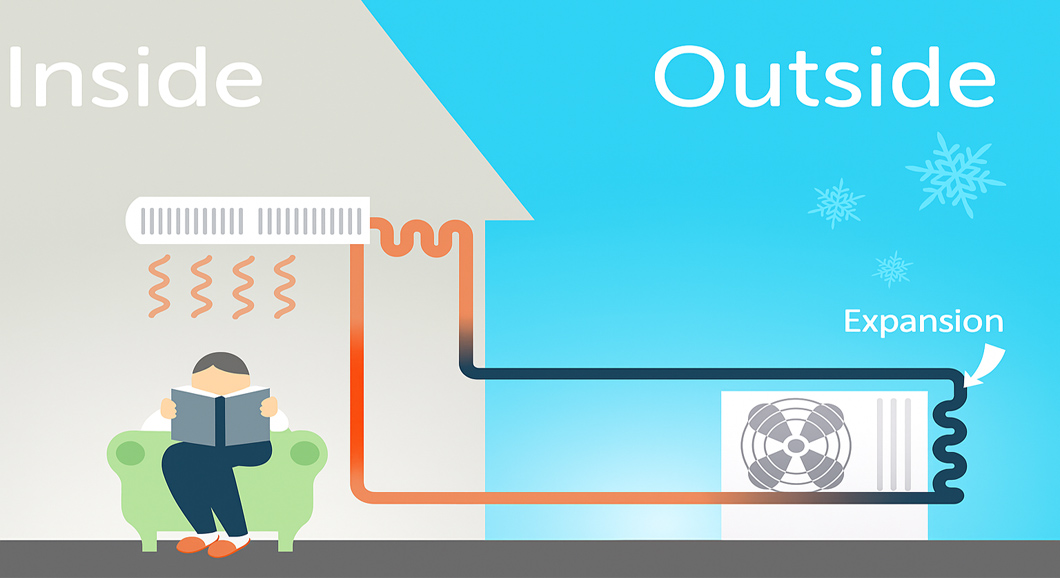

A heat pump is essentially a device that transfers heat from one place to another. Unlike traditional heating systems that generate heat through combustion or electrical resistance, heat pumps move existing heat from a cooler area to a warmer one. This process is similar to how a refrigerator works, but in reverse. A refrigerator extracts heat from its interior and releases it into the surrounding environment, while a heat pump extracts heat from the outside environment and releases it indoors.

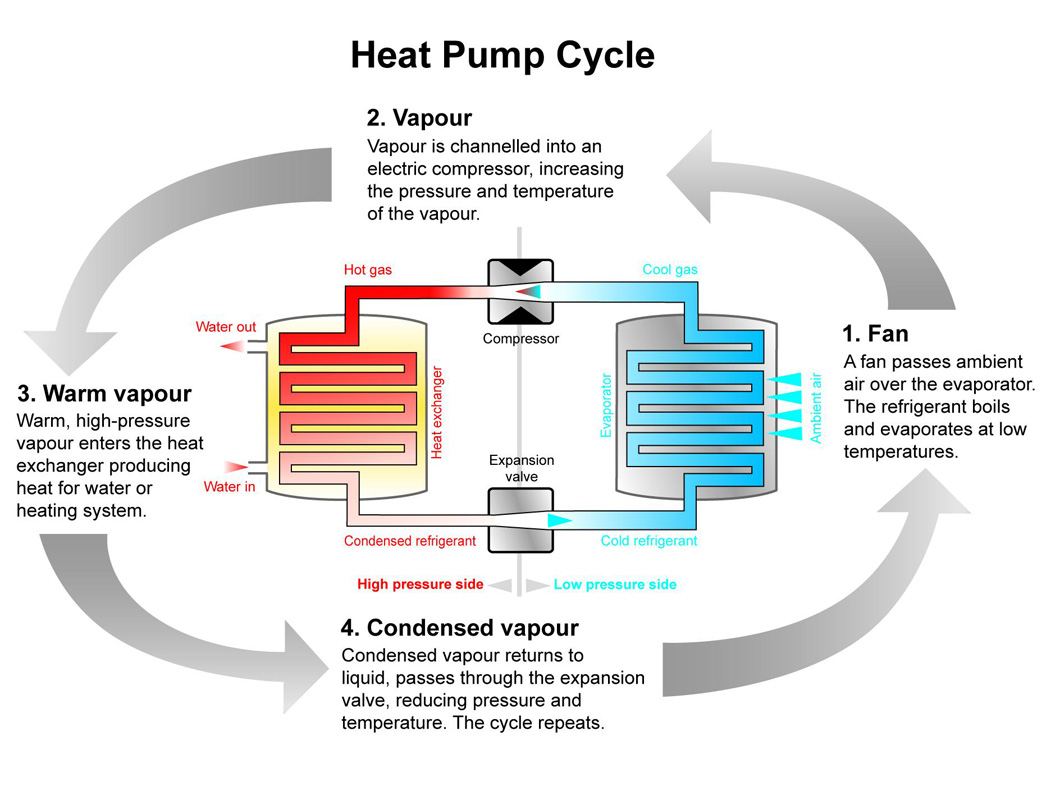

The Refrigeration Cycle
The operation of a heat pump is based on the refrigeration cycle, which involves four main components: the evaporator, the compressor, the condenser, and the expansion valve. Here is a step-by-step explanation of how these components work together:
- Evaporator: The process begins with the evaporator, which is located in the cooler environment (e.g., outside the house). The refrigerant, a substance with a low boiling point, absorbs heat from the surrounding air or ground. As it absorbs heat, the refrigerant changes from a liquid to a gas. This phase change is crucial because it allows the refrigerant to carry a significant amount of heat.
- Compressor: The gaseous refrigerant then moves to the compressor. The compressor increases the pressure and temperature of the refrigerant by compressing it. This step is essential because it raises the refrigerant’s temperature to a level that is higher than the desired indoor temperature. The high-pressure, high-temperature refrigerant is now ready to release its heat.
- Condenser: The next step involves the condenser, which is located in the warmer environment (e.g., inside the house). Here, the hot, high-pressure refrigerant releases its heat to the surrounding air or water. As the refrigerant releases heat, it cools down and changes back from a gas to a liquid. This phase change releases a large amount of heat, which is used to warm the indoor space.
- Expansion Valve: Finally, the liquid refrigerant passes through the expansion valve, which reduces its pressure and temperature. This step prepares the refrigerant to absorb heat again in the evaporator, and the cycle repeats.
The Coefficient of Performance (COP)
Definition
The Coefficient of Performance (COP) is a measure of the efficiency of a heat pump. It is defined as the ratio of the amount of heat delivered (or removed) to the amount of electrical energy consumed. In simpler terms, it tells us how much heat a heat pump can produce for every unit of electricity it uses.
Mathematically, the COP is expressed as:
COP=Electrical Energy Consumed (W)Heat Delivered (Q)
When a heat pump has a COP (Coefficient of Performance) of 5.0, it can significantly reduce electricity bills compared to traditional electric heating. Here is a detailed analysis and calculation:
Energy Efficiency Comparison
Traditional electric heating has a COP of 1.0, meaning that it produces 1 unit of heat for every 1 kWh of electricity consumed. In contrast, a heat pump with a COP of 5.0 produces 5 units of heat for every 1 kWh of electricity consumed, making it far more efficient than traditional electric heating.
Electricity Cost Savings Calculation
Assuming the need to produce 100 units of heat:
- Traditional Electric Heating: Requires 100 kWh of electricity.
- Heat Pump with COP of 5.0: Only requires 20 kWh of electricity (100 units of heat ÷ 5.0).
If the electricity price is 0.5€ per kWh:
- Traditional Electric Heating: The electricity cost is 50€ (100 kWh × 0.5€/kWh).
- Heat Pump with COP of 5.0: The electricity cost is 10€ (20 kWh × 0.5€/kWh).
Savings Ratio
The heat pump can save 80% on electricity bills compared to traditional electric heating ((50 - 10) ÷ 50 = 80%).
Practical Example
In practical applications, such as domestic hot water supply, assume that 200 liters of water need to be heated from 15°C to 55°C daily:
- Traditional Electric Heating: Consumes approximately 38.77 kWh of electricity (assuming a thermal efficiency of 90%).
- Heat Pump with COP of 5.0: Consumes approximately 7.75 kWh of electricity (38.77 kWh ÷ 5.0).
At an electricity price of 0.5€ per kWh:
- Traditional Electric Heating: Daily electricity cost is about 19.39€ (38.77 kWh × 0.5€/kWh).
- Heat Pump with COP of 5.0: Daily electricity cost is about 3.88€ (7.75 kWh × 0.5€/kWh).
Estimated Savings for Average Households: Heat Pumps vs. Natural Gas Heating
Based on industry-wide estimates and European energy price trends:
|
Item |
Natural Gas Heating |
Heat Pump Heating |
Estimated Annual Difference |
|
Average Annual Energy Cost |
€1,200–€1,500 |
€600–€900 |
Savings of approx. €300–€900 |
|
CO₂ Emissions (tons/year) |
3–5 tons |
1–2 tons |
Reduction of approx. 2–3 tons |
Note: Actual savings vary depending on national electricity and gas prices, building insulation quality, and heat pump efficiency. Countries like Germany, France, and Italy tend to show greater savings, especially when government subsidies are available.
Hien R290 EocForce Serie 6-16kW Heat Pump: Monobloc Air to Water Heat Pump
Key Features:
All-in-one Functionality: heating, cooling, and domestic hot water functions
Flexible Voltage Options:220–240 V or 380–420 V
Compact Design:6–16 kW compact units
Eco-Friendly Refrigerant:Green R290 refrigerant
Whisper-Quiet Operation:40.5 dB(A) at 1 m
Energy Efficiency:SCOP Up to 5.19
Extreme Temperature Performance: Stable operation at –20 °C
Superior Energy Efficiency: A+++
Smart Control and PV-ready
Anti-legionella function: Max Outlet Water Temp.75ºC
